High-Flow Rainwater, Borehole, Well & Spring Water Filtration Pack + 55 W UV
Complete high-flow filtration pack with 55 W UV-C sterilizer for rainwater, borehole water, well water or spring water. This version is designed for installations requiring higher treatment capacity, several water outlets or greater simultaneous water demand.
- Self-cleaning pre-filter to capture larger impurities and protect the installation
- Triple 10-inch filter for progressive and customizable filtration
- 1 x 5-micron sediment cartridge + 1 x activated carbon block cartridge included
- 3rd housing left free for an additional treatment cartridge if required
- 55 W AMALGAM UV-C sterilizer
- UV treatment flow up to 2.18 m³/h – 43.64 L/min for drinking-water treatment
- Up to 2.72 m³/h – 54.55 L/min – 12 GPM for the treatment level indicated as clean water
- UV connection: 1" – 26/34
The preferred version for homes or installations requiring greater treatment capacity. Actual system flow also depends on the filters, cartridges, pipework, pump and other equipment installed upstream.
This complete system combines a self-cleaning pre-filter, a triple 10-inch filter and a 55 W AMALGAM UV-C sterilizer. Each stage has a specific purpose: protecting the installation, refining the water through cartridges and providing final microbiological treatment.
Compared with the 25 W version, the 55 W UV sterilizer provides significantly greater treatment capacity. It is particularly suitable for installations with several water outlets, multiple bathrooms or higher simultaneous water demand.
Up to 2.18 m³/h for drinking-water treatment and up to 2.72 m³/h depending on the treatment level.
Adapt the final filtration stage to the actual characteristics of your water.
The 55 W sterilizer uses a larger connection designed for installations requiring greater capacity.
Why choose the 55 W high-flow UV filtration pack?
The 55 W version uses the same three-stage treatment principle as the smaller system but provides substantially greater UV treatment capacity.
The 55 W UV sterilizer is rated up to 2.18 m³/h – 43.64 L/min for drinking-water treatment and up to 2.72 m³/h – 54.55 L/min – 12 GPM for the treatment level indicated as clean water.
This additional capacity is useful when several water outlets may operate at the same time or when the installation requires greater flow reserve. Actual system flow also depends on the filters, cartridges, pump, pipe diameter and other equipment installed in the network.
High-flow treatment for borehole, well, rainwater and spring water
This pack is designed for installations supplied from a local water source: borehole water, well water, spring water or harvested rainwater.
Depending on the source, water may contain sand, silt, suspended solids, unpleasant tastes or odours, iron or other specific parameters, as well as presenting a possible microbiological risk.
The self-cleaning filter protects the installation, the triple filter refines and customizes the water treatment, and the 55 W UV-C sterilizer provides the final microbiological stage.
How does the 55 W UV filtration pack work?

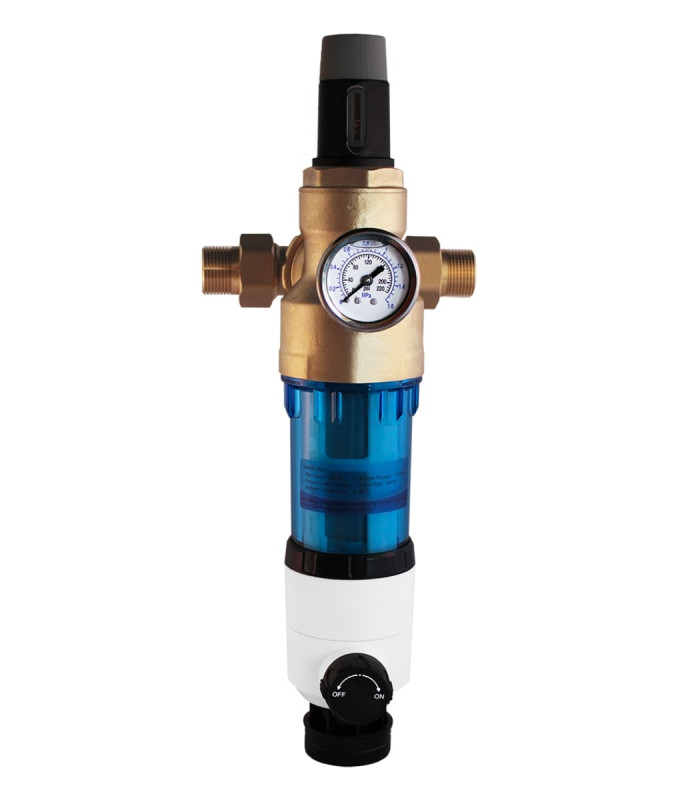

1. Self-cleaning pre-filtration to protect the system
The self-cleaning filter is installed at the beginning of the system to capture larger solid impurities before they reach the finer cartridges and UV sterilizer.
Its progressive filtration of 90 then 40 microns helps capture sand, rust and other deposits.
The backwash system makes routine cleaning easier by flushing accumulated impurities from the filter.
The filter also incorporates a pressure reducer and pressure gauge and accepts 3/4" and 1" connections.
2. Triple filtration: adapt the treatment to your water
The second treatment stage uses a filter with 3 standard 10-inch housings. This allows several filtration stages to be combined while keeping the third housing available for an additional treatment cartridge.
Captures fine particles still present after the initial pre-filtration stage.
Helps improve taste and odour and contributes to reducing certain unwanted compounds.
The third housing remains free so that a cartridge suited to your water analysis can be added if required.
The pack contains everything needed to get started without adding several sets of replacement cartridges to the initial cost. Additional cartridges and treatment media can then be selected according to the actual needs of your installation.

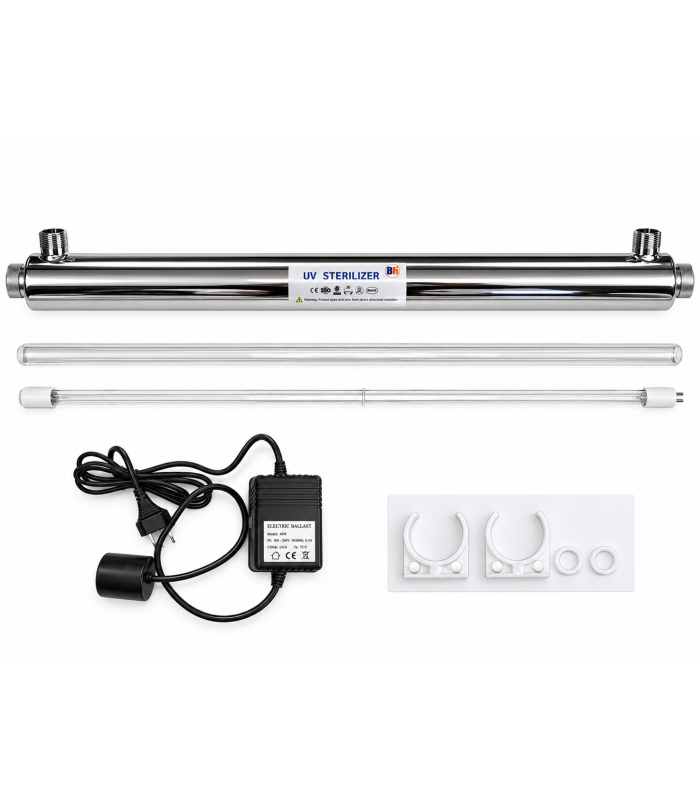

3. 55 W UV-C sterilizer: greater treatment capacity
The 55 W UV sterilizer is installed as the final stage of the system. Its UV-C radiation acts on micro-organisms present in the previously filtered water.
- 9.6 GPM – 43.64 L/min – 2.18 m³/h for drinking-water treatment
- 12 GPM – 54.55 L/min – 2.72 m³/h for the treatment level indicated as clean water
- UV-C lamp: 55 W AMALGAM
- Stated lamp life: approximately 16,000 hours
- Flow rate for drinking-water treatment: 2.18 m³/h – 43.64 L/min
- Maximum flow indicated for clean water: 2.72 m³/h – 54.55 L/min – 12 GPM
- Body: stainless steel
- Stainless-steel chamber length: approximately 950 mm
- Outer diameter: approximately 65 mm
- Connection: 1" – 26/34
- Maximum operating pressure: 6.8 bar
- Ballast cable length: approximately 1.35 m
The 2.18 and 2.72 m³/h values refer to the UV sterilizer itself. The actual flow available at the outlets also depends on the cartridges, their level of clogging, the pump, pipework and other equipment in the installation.
UV treatment acts on micro-organisms but does not remove particles, reduce turbidity or remove chemical contaminants. The water must therefore be properly filtered before entering the UV sterilizer.
Borehole and well water: adapt the treatment to your water analysis
Borehole, well and spring water do not have a standard composition. Water analysis helps identify the actual characteristics of the source and determine whether additional treatment is required.
Depending on the analysis results, the third housing can accept a specific cartridge to complement the filtration without replacing the complete system.

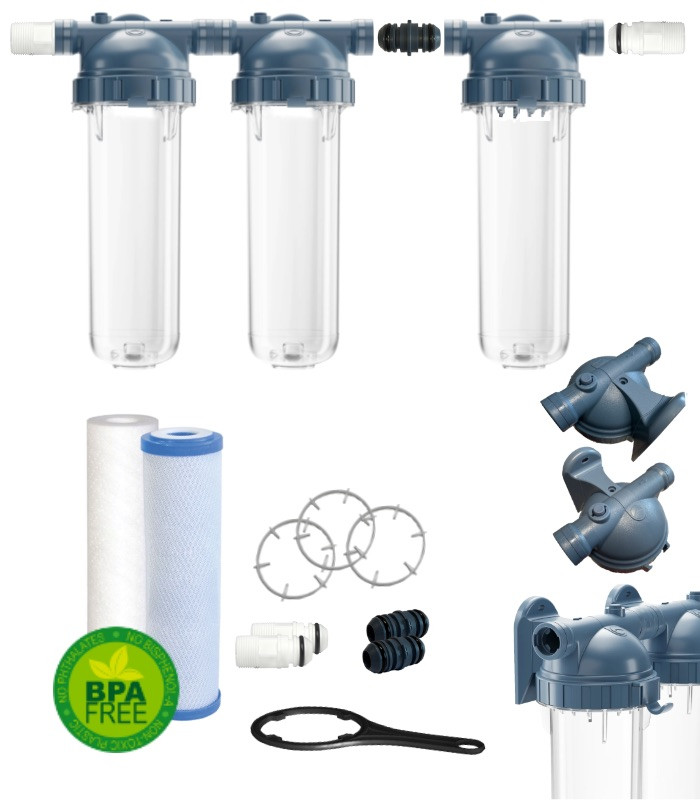

What is included in the 55 W UV filtration pack?
- 1 self-cleaning filter with pressure reducer and pressure gauge
- 1 triple filter with 3 standard 10-inch housings
- 1 x 5-micron sediment cartridge
- 1 x activated carbon block cartridge
- 1 free third housing
- Triple-filter connectors and accessories
- 1 x 55 W AMALGAM UV-C sterilizer
- Quartz sleeve
- 55 W UV-C lamp
- Ballast and power cable
- Mounting brackets
- Seals required for installation
Installing the high-flow 55 W UV filtration pack

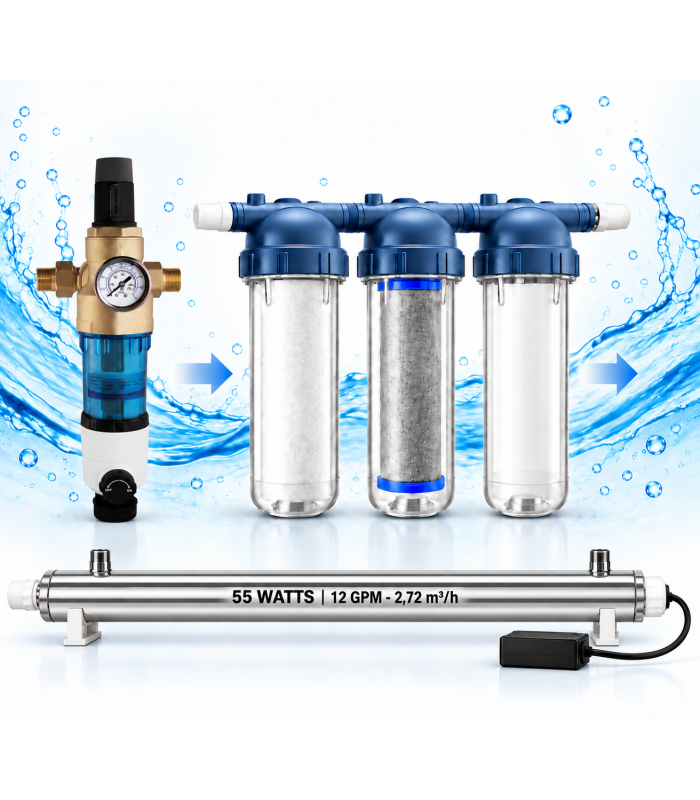

Water supply → self-cleaning filter → triple filter → 55 W UV sterilizer → water distribution system
The 55 W UV sterilizer uses a 1" (26/34) connection. For high-flow installations, the other components of the water system should also be sized accordingly.
Maintenance and consumables
The self-cleaning filter is maintained by backwashing. The standard 10-inch cartridges in the triple filter should be replaced according to water quality, water consumption and their level of saturation.
The 55 W AMALGAM UV-C lamp is rated for approximately 16,000 operating hours. The UV lamp and related electrical components are consumable parts.
FAQ – High-flow borehole, well and rainwater filtration pack with 55 W UV
What is the difference between the 25 W and 55 W UV packs?
The main difference is the UV sterilizer capacity. The 55 W model can treat a higher flow rate and provides greater reserve for installations with higher simultaneous water demand.
What flow rate can the 55 W UV sterilizer treat?
It is rated at 2.18 m³/h – 43.64 L/min for drinking-water treatment and up to 2.72 m³/h – 54.55 L/min – 12 GPM for the treatment level indicated as clean water.
Is the 55 W pack suitable for several water outlets?
Its greater UV treatment capacity makes it particularly useful when several water outlets may operate at the same time. The filters, cartridges, pump and pipework must also be able to provide the required flow.
Can this pack be used for borehole or well water?
Yes. It is designed for borehole, well, spring and harvested rainwater. If the water is intended for drinking, water analysis is strongly recommended to identify any additional treatment requirements.
Why should the UV sterilizer be installed after the filters?
Reducing particles and turbidity before UV treatment helps provide suitable conditions for UV-C treatment. The sterilizer is therefore installed after the mechanical filtration stages.
Do all three filter housings need a cartridge?
No. The pack includes one sediment cartridge and one activated carbon cartridge. The third housing remains available for an additional treatment cartridge if required.
This pack combines self-cleaning pre-filtration, customizable triple filtration and a 55 W AMALGAM UV-C sterilizer. It is designed for rainwater, borehole, well or spring water installations requiring greater UV treatment capacity than the 25 W version, particularly when several water outlets may be used simultaneously.
