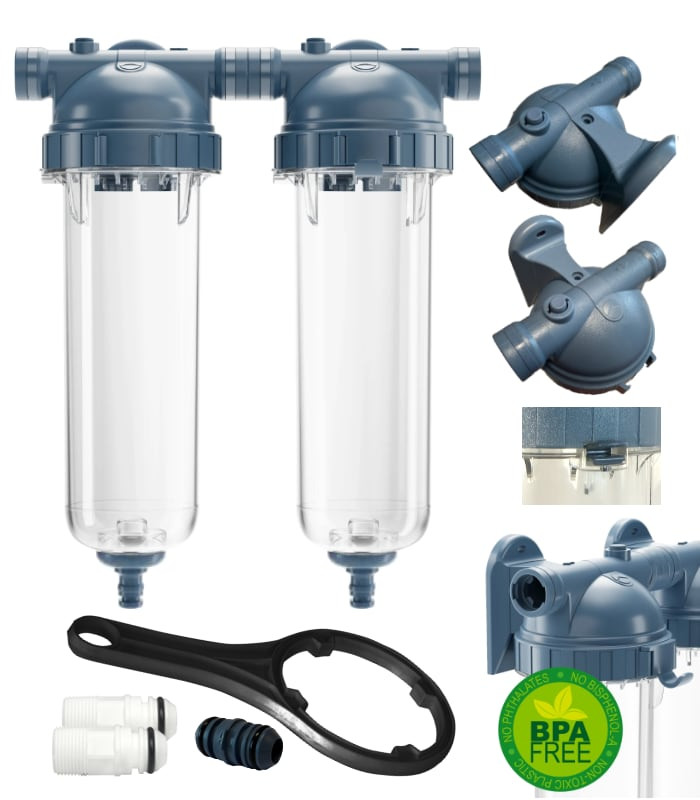

Modular water filter support

Allows you to create 2 filtration stages
and easily add more later.
Bisphenol A-free product, made in Europe

Depending on the cartridges used:

  • eliminates sludge and residues
  • improves taste
  • improves odour
  • better water quality
  • optimises the operation of limescale inhibitors
  • limits pesticides, heavy metals, etc.

Don't forget to order the appropriate 10" inch cartridges.

More details

Reduced price!
New product
Limited special offer

59,18 € tax incl.

78,90 € tax incl.

-25%

rating Read the 3 reviews

- +


More info

Porte filtre à cartouches

Advantages of the modular water filter holder?

These filter holders can be easily fitted together, without screwing or sealing work, to provide several stages of filtration.
Modular connections also have the advantage of turning on themselves, which means there are no screwing/angle constraints when you're close to the wall and need to use an elbow for the connection.(see video)

You can start with 2 filter doors and easily add more later if required.

General

This product is made in Poland to a very high European standard.

The dimensions of the filter are:

  • 35 cm wide
  • 37 cm high (with support)
  • 13 cm deep (with support)

It is supplied with :

  • 2 assembled tanks/filter bodies, manufactured without bisphenol A (BPA)
  • 1 mounting key
  • 2 brackets
  • 1 double connector for modular filter
  • 2 20/27 (3/4) connectors

High quality design:

  • high body strength for operation at pressures up to 10 bar
  • interchangeable modular outlets; 1 inch (26/34) - 3/4 inch (20/27) - 1/2 inch (15/21) or for 1/4 inch tube
  • reversible filter support to choose the direction of flow
  • modern head fitted with a semi-automatic air vent systemsemi-automatic air vent
  • 1 tank equipped with water vent system
  • contains no BPA (bisphenol-free), totally safe for your health
  • integrated key holder

This filter holder is made from recycled plastic and is also completely recyclable!
Operating temperature from 2° to 35°C

Recommended accessories

As an option, you can choose the basic pack of filter cartridges to be used:

  • 3 sediment cartridges + 3 activated carbon

This pack will allow you to filter your water for up to 3 years. Generally, each cartridge is changed between 6 and 12 months depending on the quality of the water.

Whether you're treating mains water, rainwater, spring water or water from a borehole or well, this filter holder is ideal for using filtration and treatment cartridges tailored to your needs.

You'll find the different types of treatment cartridge in the options to tick after this description.

Porte filtre cartouche sédiments

Sediment cartridge

As the first stage of filtration, use a sediment filtration cartridge to obtain clear, limpid water in which all suspended organic impurities have been removed.

We recommend using a washable or disposable 5-micron sediment cartridge. This level of filtration enables the water to be clarified to the extreme without losing too much pressure or flow. It is also essential for treating bacteria with a UV steriliser.

A self-cleaning filter is recommended before this first stage if you are using borehole water, spring water, water from a well or rainwater recovery.
This pre-filter removes the largest impurities without having to replace cartridges, and can be cleaned by backwashing. This pre-filter eliminates the largest impurities without having to replace cartridges.



Porte filtre cartouche charbon actif

Activated carbon cartridges

Before the final filtration stage, we use activated carbon blocks, which act on harmful elements solubilised in the water.
We recommend using a 10 micron cartridge. The fineness of the carbon serves to retain the water in contact with the carbon for as long as possible. This has nothing to do with the filtration of 5 micron sediments.
Finer filtration with activated carbon block would result in insufficient flow to supply a dwelling.

Activated charcoal is a natural detoxifier with a very high adsorption capacity, so it can quickly help to purify our bodies and the water we drink.

Thanks to its extreme porosity and adsorption capacity, activated charcoal is capable of retaining many contaminants.
It is effective against chemicals, pesticides, solvents and volatile organic compounds, heavy metals, nitrates, pfas, chlordecone, drug residues and food additives....

As the final filtration stage, granular activated carbon (GAC ) is used to supplement block activated carbon and retain pollutants that the latter is unable to eliminate. (It is more effective on VOCs, for example).

Activated carbon is made up of small pieces of coal, in granular or block form, which have been treated to make them extremely porous.

1 gram of activated carbon has a surface area of between 500 and 3,000 m2.

To give you an idea of this surface area, 4 grams of activated carbon is equivalent to the surface area of an entire football pitch! It is precisely this enormous surface area that makes the carbon filter so incredibly effective at adsorbing and eliminating impurities as well as more complex substances.

Porte filtre pour cartouches 10 pouces

The intermediate filtration stages

After the first filtration stage and before the activated carbon cartridges, which come last, you can use specific filtration cartridges.

Some contaminants in the water cannot be eliminated by activated carbon, so you will need to use appropriate cartridges, such as our anti-iron filtration cartridge, which will reduce iron/manganese levels, or our FLAR cartridge, which retains arsenic and fluoride.
While many people try to get rid of limescale, some don't have enough minerals and are faced with problems of oxidation/degradation of their equipment. Using an osmosis unit removes pollutants but eliminates minerals, which is not good for our body's acid-base balance.
We therefore also offer a "mineralising cartridge" to combat these problems.

What is the purpose of fine filtration?

It would be tempting to use just one very fine filter, but this is not advisable, as the flow rate will be too low!
Filter cartridges can be compared to a sieve or a funnel. If the strainer is too big, all the small impurities can pass through, but if the strainer is too fine, it quickly clogs up and lets almost nothing through, and neither does the water...


Filtration quality of the cartridges

That's why we use several filters of different finenesses, one behind the other. This means that the cartridges don't clog up as quickly and are more efficient. It also ensures that the correct flow rate is maintained for all appliances.



Livraison gratuite
Would you like free delivery? Don't forget the cartridges!

Don't forget the cartridges!
Why not add an anti-scale filter to your purchase? It'll be the perfect companion for your filter for even greater efficiency!


Reviews
Filter reviews
star (2)
star(0)
star(1)
star(0)
star(0)
star(0)
Reset

Click here to leave a review

rating 5
Leak
1 of the 2 filter holders was leaking, discovered after installation
Answer: You've broken the filter... the photo you sent us is clear and that's why there's a leak!
rating 10
Good product!'
Good quality at a good price.
rating 10
practice
Easy to install. Works perfectly well. I'm just wondering how many years it takes for the plastic to become brittle and the system has to be changed before there's a flood...
Answer: Now that we have some hindsight on the quality of these BPA-free plastics, we can talk about it again in a few decades' time...
Pack contents and options to choose from

Cartouches de filtration

You can add options

You can add options

0,00 €

Disregard this box, which is not a product.
If you want one or more paying options in addition, tick the corresponding box(es) and choose the quantities.

The total will be updated at the bottom of the options and on the product price.
Then simply click on add.

Filter cartridge centring device

Filter cartridge centring device

4,80 €

An essential accessory for filter doors.

These rings make it easy to centre the filter cartridges so that they are properly aligned when reassembled.

Carbon + Sediment Filter Pack

Carbon + Sediment Filter Pack

39,99 € Pack content

A cheap price for your activated carbon and sediment filter cartridges
You can store them and benefit from an advantageous price.

Pleated washable cartridge - 5 microns

Pleated washable cartridge - 5 microns

8,70 €

Washable, longer-lasting cartridges!

  • eliminates sediments such as sand, silt and rust
  • reusable (up to 6 times after washing)
  • BPA (bisphenol) free
  • higher flow rate (25 litres/minute)

For standard 10" inch filter holder.

Activated carbon cartridge Block 10 inch 10 microns

Activated carbon cartridge Block 10 inch 10 microns

9,89 €

Replacement cartridge for activated carbon filtration 10 µm.

For 10 inch filter doors.

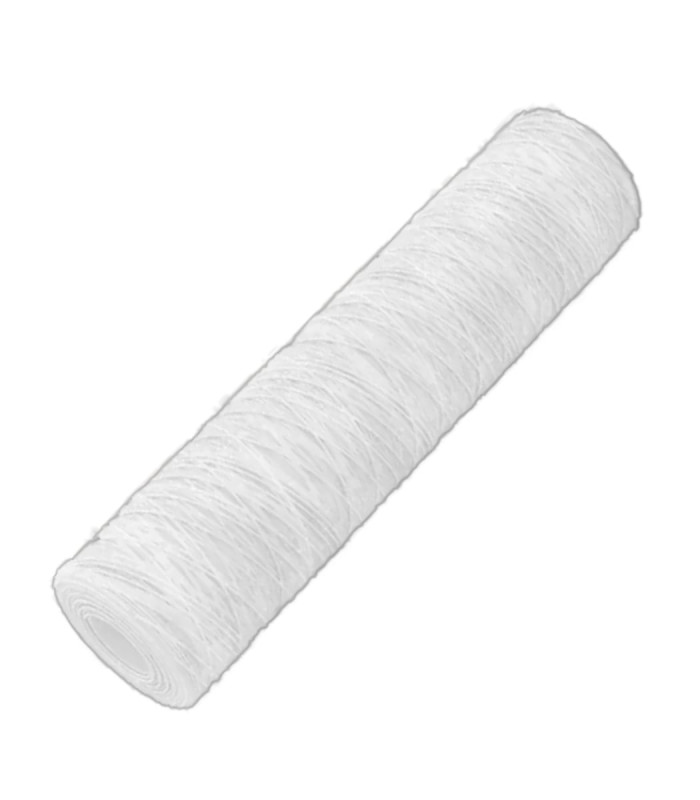

5 micron sediment cartridge 10 inches

5 micron sediment cartridge 10 inches

5,30 €

Efficient deposit filtration.

  • retains rust, sand and silt
  • degraded structure technology - extended service life
  • deep filtration effectively traps contaminants
  • Technology that increases the effective filtration area
  • cartridge replacement indicator

For 10-inch filter holders.

iron removal cartridge IR 10"

iron removal cartridge IR 10"

17,40 €

Specifically designed to remove iron, manganese and hydrogen sulphide

  • removes rotten egg smell
  • removes brown discolouration from water
  • prevents the formation of rust stains
  • removes iron and manganese compounds from water
  • 5 μm pre-filtration eliminates mechanical impurities
Activated carbon cartridge - GAC

Activated carbon cartridge - GAC

14,70 €

Coconut granule activated carbon

High-efficiency cartridge.
Fits a 10-inch filter holder.

  • improves the smell and taste of water
  • eliminates chlorine and pollutants
  • more effective at adsorbing VOCs
  • ideal as a complement to a block carbon cartridge
  • pre-filtration of sediment to 5 microns
Silver activated carbon cartridge - KDF GAC NS

Silver activated carbon cartridge - KDF GAC NS

17,40 €

Bacteriostatic activated carbon

Anti-bacterial.

  • activated carbon from coconut shells (NSF certified).
  • Silver impregnated - inhibits bacterial growth. (KDF)
  • removes unwanted impurities from water
  • improves taste and smell

Cartridge suitable for 10-inch filter doors.

Mixed cartridge - activated carbon - sediment

Mixed cartridge - activated carbon - sediment

12,90 €

Unique filtration cartridge for the whole house!

Ideal for use with a 1-tank water filter
and those who are short of space.

compact 2-in-1 cartridge:

  • removes sediment down to 5 microns (sand, silt, rust, etc.)
  • eliminates unpleasant odours from water
  • eliminates bad taste from water

The essentials of water treatment in a single filter cartridge.
For standard 10" inch filter holder.

Anti-fluorine and arsenic cartridge - FLAR

Anti-fluorine and arsenic cartridge - FLAR

19,80 €

For 10-inch filter holder - FLAR

  • effectively eliminates arsenic
  • eliminates fluorides and heavy metals
  • longer contact between the fluid and the water improves filtration quality
  • made in Central Europe - Poland
  • highest quality guaranteed
  • the product is totally safe
3/4’ connector (20-27) for modular filter

3/4’ connector (20-27) for modular filter

3,00 €

Install your modular filter holder easily with these 20/27 (3/4") connectors
These accessories allow you to adapt the 2 outlets of the filter holder to the screw pitch required for your project.

1-inch connector (26-34) for modular filter

1-inch connector (26-34) for modular filter

3,00 €

Install your modular filter holder easily with these 26/34 (1") connectors
These accessories allow you to adapt the 2 outlets of the filter holder to the screw pitch required for your project.

1/2 connectors (15-21) for modular filter

1/2 connectors (15-21) for modular filter

3,00 €

Install your modular filter holder easily with these 15/21 (1/2") connectors
These accessories allow you to adapt the 2 outlets of the filter holder to the screw pitch required for your project

Double connector for modular filter

Double connector for modular filter

3,00 €

Connect your modular filter holders together easily.
This accessory provides an instant seal without the need for screws or consumables.

Anti-limescale

You can add options

You can add options

0,00 €

Disregard this box, which is not a product.
If you want one or more paying options in addition, tick the corresponding box(es) and choose the quantities.

The total will be updated at the bottom of the options and on the product price.
Then simply click on add.

Anti-limestone magnet 10800 gauss Mi Power

Anti-limestone magnet 10800 gauss Mi Power

90,00 €

Recommended for a small home.
Ecological protection against scale.
Much more pleasant water:

  • More foam with your soaps
  • Shampoos that give better results, lighter and shinier
  • Energy savings to heat water.
  • Easy fixing with the supplied clamps.
Magnetic anti-limestone magnet 12800 gauss Max Power

Magnetic anti-limestone magnet 12800 gauss Max Power

149,00 €

Recommended for a house or company...
One of the most powerful devices to install after the water meter to treat the limestone of your whole house:

  • Better efficiency and more foam in soaps
  • More effective shampoos
  • Shinier hair and less dry and light hair
  • Hot water tank with less energy consumption....
  • Easy to attach (BTR screws included.)
Ecological anti-limestone Suprion JS-12e15

Ecological anti-limestone Suprion JS-12e15

449,28 €

Ecological limescale remover suitable for homes with up to 2 bathrooms

Effective up to 1.8 m³/hour
Non-galvanic electrostatic process SUPRION "fit and forget"

A major evolution in water treatment.
It will prevent the formation of scale through its electrostatic amplification process.

This product is WRAS certified, recommended and guaranteed by The British Gas (historical gas supplier in England.)

Salt-free ecological water softener Suprion JS-75e22

Salt-free ecological water softener Suprion JS-75e22

867,54 €

Suitable for homes with 2 or more bathrooms

Effective up to 3.4 m³/hour
A technology for limestone treatment and water rebalancing by electrostatic treatment.

WRAS certified, validated by the National Energy Distributor in the United Kingdom: British Gas - a real guarantee of results

Mounting kit Suprion JS-75e22

Mounting kit Suprion JS-75e22

18,00 €

We have designed this assembly kit for an easier and seamless adaptation to your piping system.

Related products
Pack content
  • Single tank water filter
    Limited special offer
    29,90 € tax incl. 34,80 € 74 In Stock
    rating Read the 3 reviews
    Reduced price!

    BPA-free modular filter holder

    - Bare model without connectors
    - remember to add accessories

    Can be used with standard 10" inch cartridges:

    • activated carbon filter(taste + odour + pollutants)
    • sediment filter(retains organic impurities)
    • sediment and activated carbon filter(2 in 1 cartridge)
    • anti-iron filter(eliminates rust - brown colour)

    Cartridges and connectors can be seen at the bottom of the page

  • 3,00 € tax incl. 120 In Stock
    rating Read the 3 reviews

    Connect your modular filter holders together easily.
    This accessory provides an instant seal without the need for screws or consumables.

  • 3,00 € tax incl. 135 In Stock
    rating Read the 3 reviews

    Install your modular filter holder easily with these 20/27 (3/4") connectors
    These accessories allow you to adapt the 2 outlets of the filter holder to the screw pitch required for your project.

  • 3,30 € tax incl. 196 In Stock
    rating Read the 3 reviews

    A simple, effective spanner
    to loosen the tanks of your modular filters.

Modular water filter support
meddhy z. (Tourcoing) fell for Modular water filter support There are 25 minutes Already 74 orders on this product !

No products

To be determined Shipping
0,00 € Of which taxes of
0,00 € Total incl. taxes

Prices are tax included

Check out
