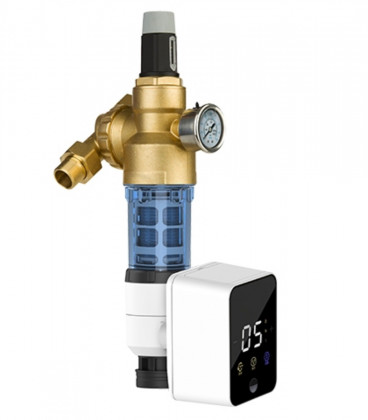

Automatic self-cleaning filter
Equipped with a pressure reducer and pressure gauge
Countercurrent washing without water shut-off.
Advantages:
- filtration of solid impurities such as sand, rust, limescale, etc;
- can be installed on vertical, horizontal or angled pipes
- 1" and 3/4" universal connector (26/34 and 20/27)
- system BACKWASH - simple reverse flush operation. Just one valve to open or automate!
- rinsing water can be drained directly into the sewage system
- system TWIST & CLEAN - cleaning the filter housing from the inside without having to turn off the water from the system
An upgradeable system
Optional: add the electronic box to automate backwashing
Protection of sanitary appliances from impurities.
Thanks to its stainless steel sieve, this filtration will retain impurities, guarantee much better quality water and preserve your sanitary equipment.
It's also a great solution for those who use finer filters (5 micron filtration cartridges, activated carbon, water purification...) to be able to maintain their filtration cartridges much longer and avoid changing them too frequently.
Far too often, limescale is blamed as the source of all the problems in our plumbing system.
Even though mains water is not treated for limescale, it also contains a lot of sand, rust and impurities that simply come from the pipes buried in our network. They sometimes leak because they degrade over time and cannot be changed as regularly as they should.
A deposit called biofilm naturally forms in our water distribution pipes, and some pieces of it may come loose from time to time and invite themselves into your home...
Effective backwash cleaning
This filter features an ingenious backwash system. When activated, the water will flow backwards through the filter and will be able to reject any impurities it may have retained without your home's water supply being shut off.
This rinsing water will simply be connected to the wastewater drain or collected in a bucket if you don't have a drain nearby.
Automatic filter washing is possible!
AS AN OPTION, this filter can also be fitted with a box that will activate the backwash automatically.
So you won't have to worry about it anymore!
The system will become autonomous and maintain optimum water quality in your home without any further intervention on your part.
Overpressure protection for appliances
Thanks to its pressure gauge, checking the correct water pressure in your home is child's play.
It will then be easy to adjust the pressure regulator to fit and protect all the appliances that work with water in the home.
A pressure of 3 bars is sufficient for optimum operation of the plumbing installations in a home.
Above 3 bars, the pressure is considered too high and it is advisable to reduce it.
1 bar= 0.1 MPa - recommended setting 3 bars = 0.3 MPa
What are the consequences of too much pressure?
Premature wear and tear on sanitary appliances
A washing machine, dishwasher or water heater are designed to withstand normal pressures. Their lifespan will be drastically shortened if they are regularly subjected to too much pressure. Replacing or repairing these appliances can quickly prove very costly.
Water leaks at sensitive points
There are now many different technologies used to connect pipes (crimping, welding, compression, etc.). Even if they are designed to withstand pressures well in excess of 3 bar, they can become sensitive, deteriorate significantly and even leak if they are subjected to excessively high pressure too regularly.
Irrrational water wastage
The flow of water is also linked to pressure. Above 3 bars, the constant flow through safety groups, toilet flushes and our taps represents a significant increase in water consumption that will be reflected in the bill!
Difficult temperature adjustment of mixers and mixer taps
Thermostatic taps are designed to operate from
Features of the self-cleaning filter
1 bar = 0.1 MPa - recommended setting 3 bar = 0.3 MPa
- inlet pressure: 8 bar maximum
- outlet pressure: adjustment from 2 to 6
- working pressure: 1.5 bar minimum
- working temperature: 5 to 30 degrees Celcius
- connection size: 3/4 and 1 inch - 20/27 or 26/34
- filtration fineness: 40 microns
- output water flow: 4m3/hour or 66.7 litres/minute
- weight: 2.3kg
- size: 160 x 95 x 360mm
- connection spacing: 95mm without connectors
The filter can be cleaned for many years without dismantling.
A built-in scraper ensures that the jar and grid are cleaned properly when the self-cleaning function is activated.
If the inside of the filter becomes too dirty, or if it starts to deteriorate after ten years or so, it will need to be completely dismantled. The grids inside are available as spare parts if required.
