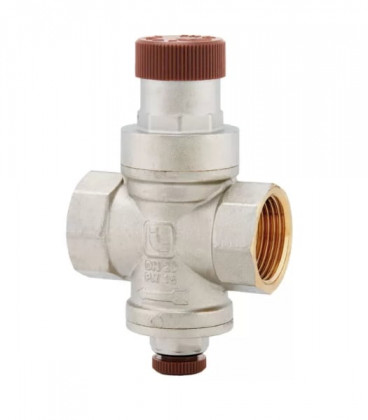

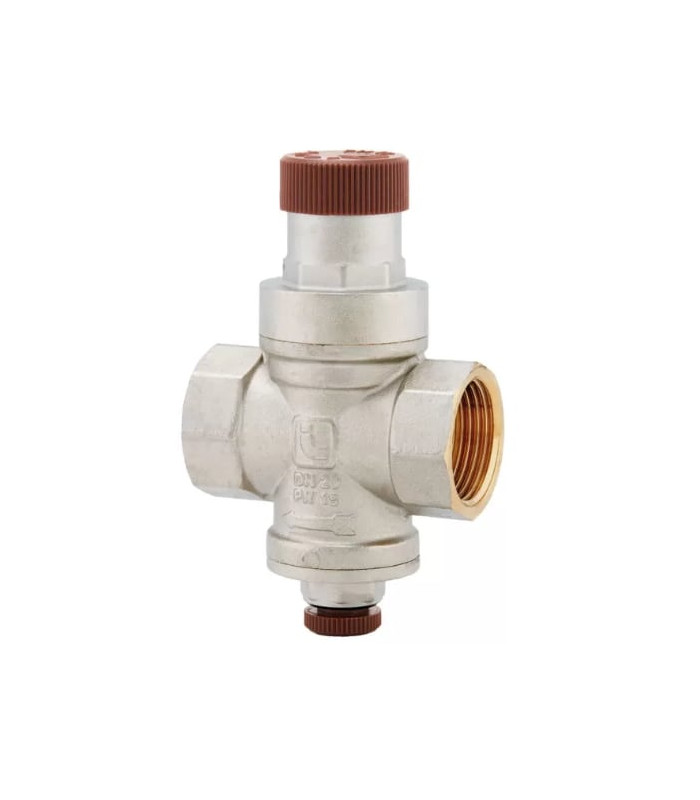

3/4 pressure reducer with pressure gauge connection

Protect your household appliances, water heaters, boilers and heat pumps....

- compact dimensions
- versatile installation direction
- with pressure gauge connection
- 3/4 (20/27) female threads

More details

New product

More info
Download
Reviews

More info

A pressure limiter is essential.

It is highly recommended to protect all appliances connected to the water network in your house, flat, business premises, etc.
It is recommended not to use a water pressure higher than 3 bars.

Pressure reducers: what are their advantages and disadvantages?

it saves energy (by regulating the flow of water, it automatically reduces consumption)
it prevents leaks, water hammer and other problems caused by excessive water pressure
it ensures that your appliances such as water heaters, washing machines and boilers work properly
it requires very little maintenance (have it checked during the annual maintenance of your water heater)

No direction of installation for our limiter/regulator

Apart from the direction of water flow, the limiter can be installed in any position.

Position d'installation horizontale, verticale ou autre

Regulator technical information:

Piston operated with compensated seat.
Female/female threaded connections.
Nickel-plated brass body.
Minimum and maximum operating temperatures: 0°C, 80°C.
Maximum inlet pressure: 15 bar.
Outlet pressure adjustable from 1 to 4 bar.
Factory setting 3 bar.
1/4" pressure gauge connection for outlet pressure control.
ISO 228 threaded connections (equivalent to DIN EN ISO 228 and BS EN ISO 228).

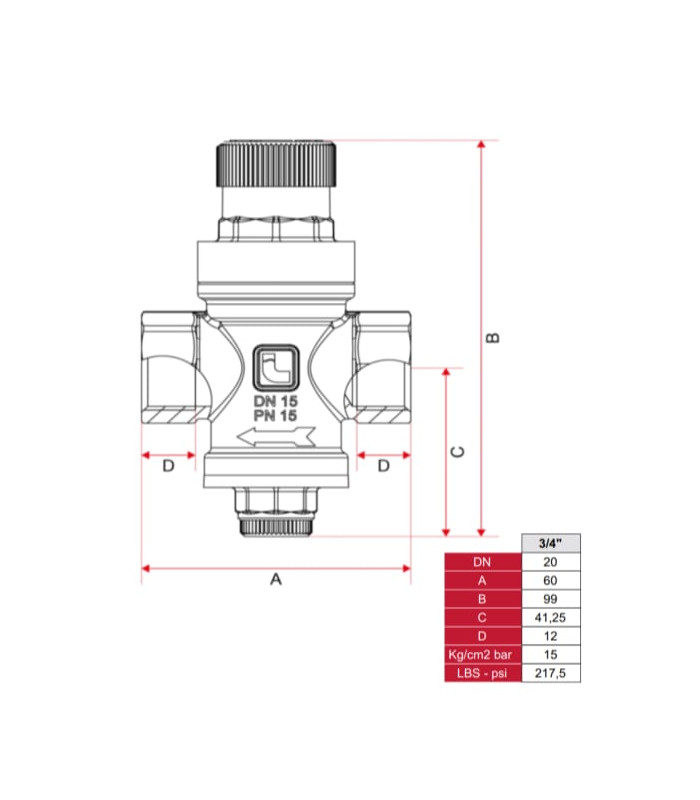

dimensions régulateur de pression

Download

Instructions for use

Download (1.42M)

Reviews

Click here to leave a review

Pack contents and options to choose from

Water filter option

	You can add options 0,00 € Disregard this box, which is not a product. If you want one or more paying options in addition, tick the corresponding box(es) and choose the quantities. The total will be updated at the bottom of the options and on the product price. Then simply click on add.
	Standard pressure gauge for drinking water 9,60 € 1/4" radial pressure gauge - DN 50 Ideal for mounting on our pressure regulator/limiter. Allows you to quickly check the pressure in your water network. - Graduations from 0 to 16 bar
