3-Way Fold-Down Kitchen Tap for Under-Window Installation – 304 Stainless Steel
rob3vr
Fold-down 3-way kitchen tap in 304 stainless steel, designed to provide hot, cold and filtered or purified water from one single tap.
- 90° fold-down spout, ideal in front of a window.
- Upright height: 336 mm.
- Folded height: only 78 mm.
- Single lever controls all 3 functions.
- Separate waterway for filtered or purified water.
- 304 stainless steel body with brushed finish.
- Ceramic cartridge and removable aerator.
This 304 stainless steel 3-way kitchen tap combines hot water, cold water and filtered or purified water in a single fitting. Its fold-down spout reduces the overall height from 336 mm to only 78 mm, making it particularly suitable for sinks installed directly in front of a window.
Fold-down 3-way kitchen tap: key features
Hot water, cold water and filtered or purified water are all available from the same tap. This provides a clean and practical installation without the need for a separate drinking-water tap.
- 90° fold-down spout to clear the space in front of a window.
- 336 mm upright and only 78 mm folded.
- Single lever for filtered water and mixed hot/cold water.
- Separate waterway for filtered or purified water.
- 304 stainless steel with brushed finish.
- Ceramic cartridge and removable aerator.
- All three water connections pass through one mounting body.

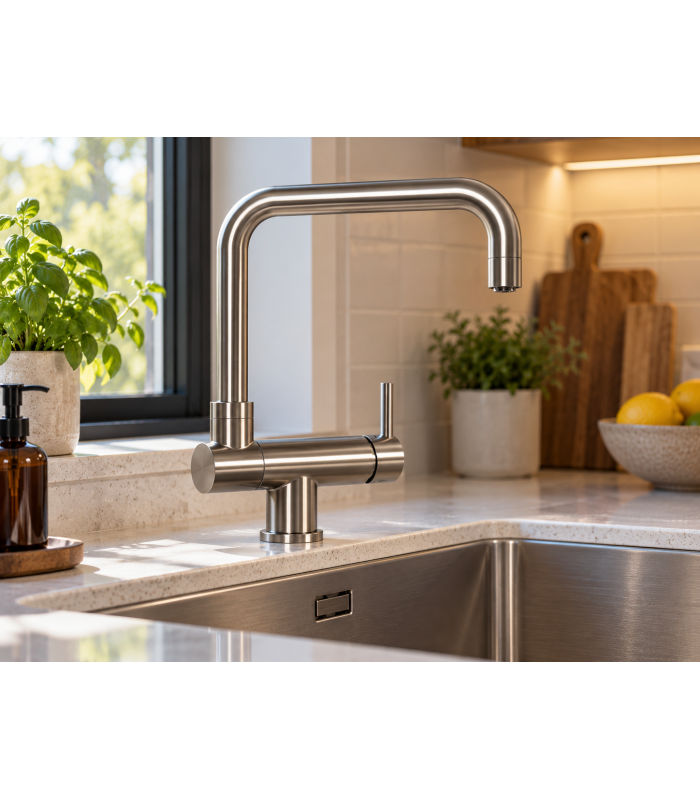

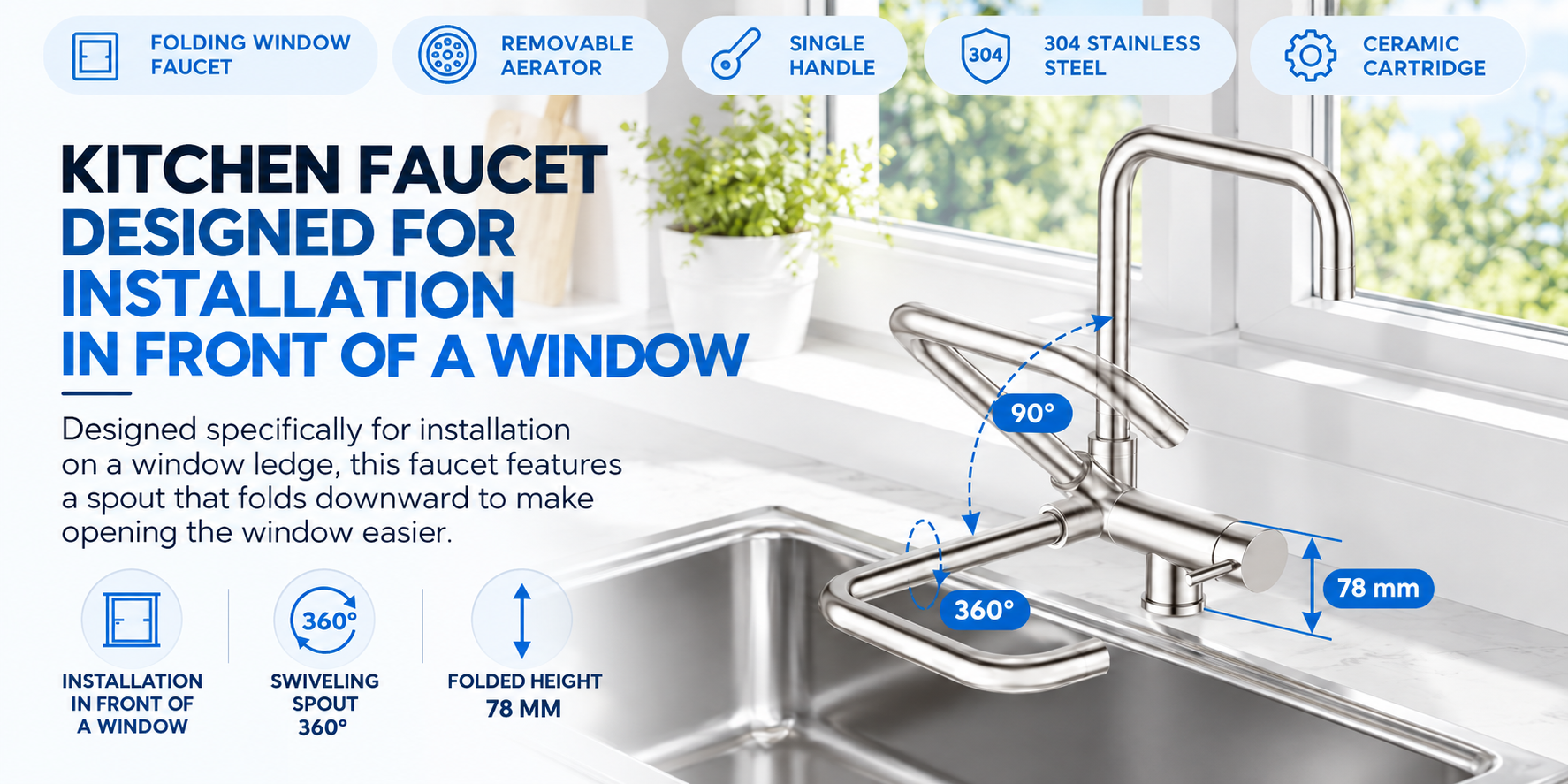

Ideal for installation under a window
When a sink is positioned directly in front of a window, a tall kitchen tap can prevent the window from opening fully. This model has been specifically designed for this type of installation.

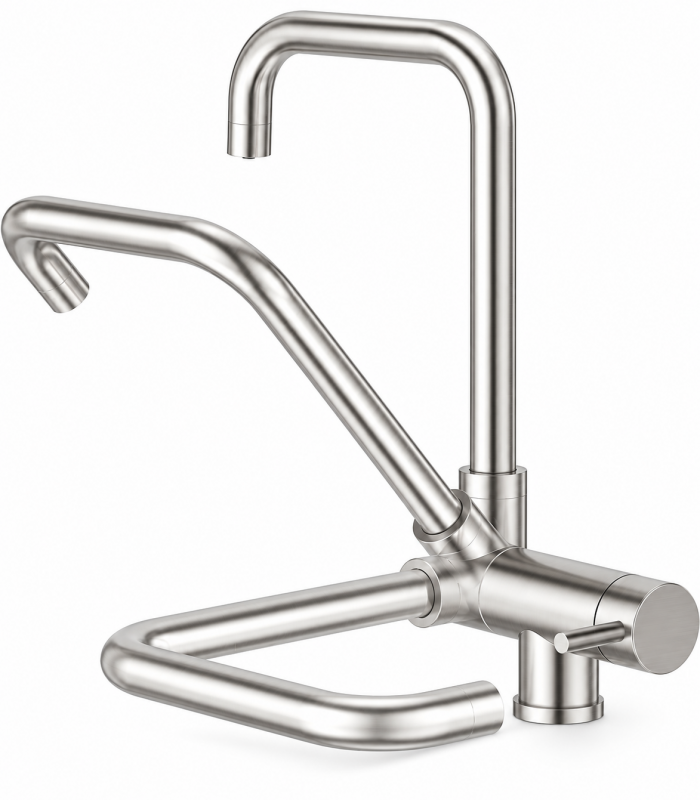

The spout can be folded down by 90° and then moved sideways to clear the space in front of the window.

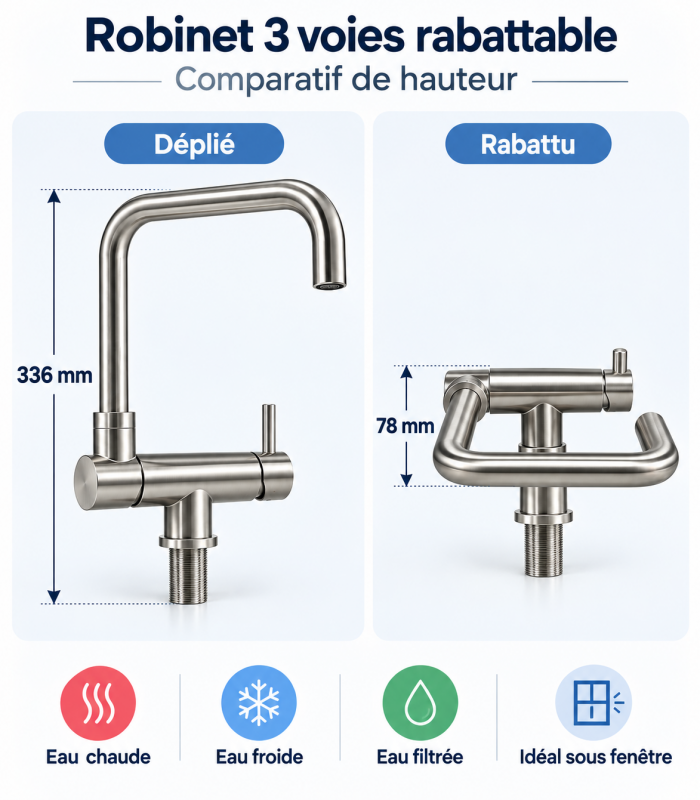

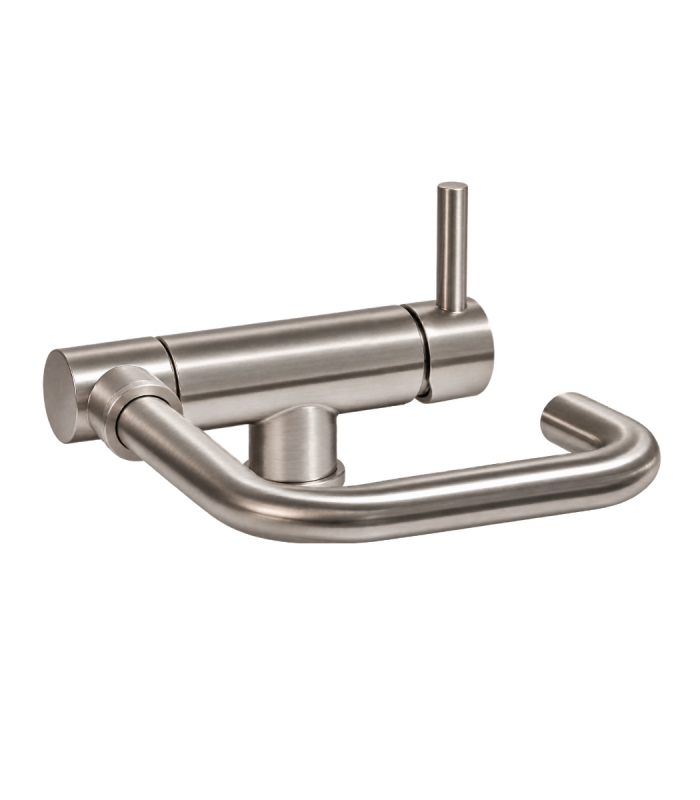

The total tap height is 336 mm in the upright position. Once the spout is fully folded down, the highest point is only 78 mm above the worktop.
Before installation, simply check that the available clearance beneath the window is greater than 78 mm.

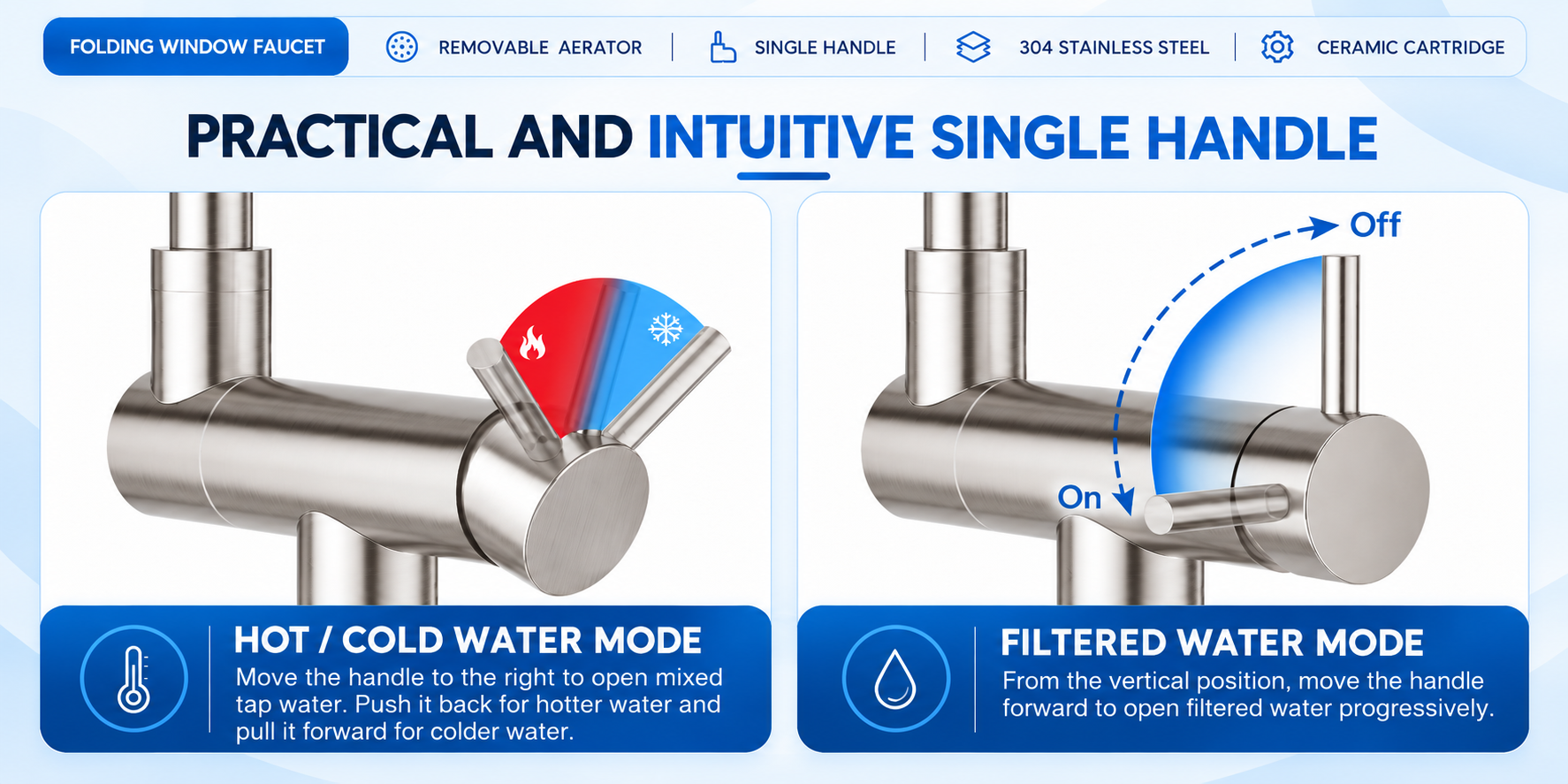

How does the single lever work?
Unlike many 3-way taps fitted with two separate controls, this model uses one single lever to select filtered water or mains water and to adjust the temperature.
From the closed position, move the lever forwards to progressively open the dedicated filtered or purified water circuit.
Moving the lever to the right progressively opens the mixed hot and cold water supply.
The temperature is then adjusted by moving the lever: towards the rear for hotter water and towards the front for colder water.

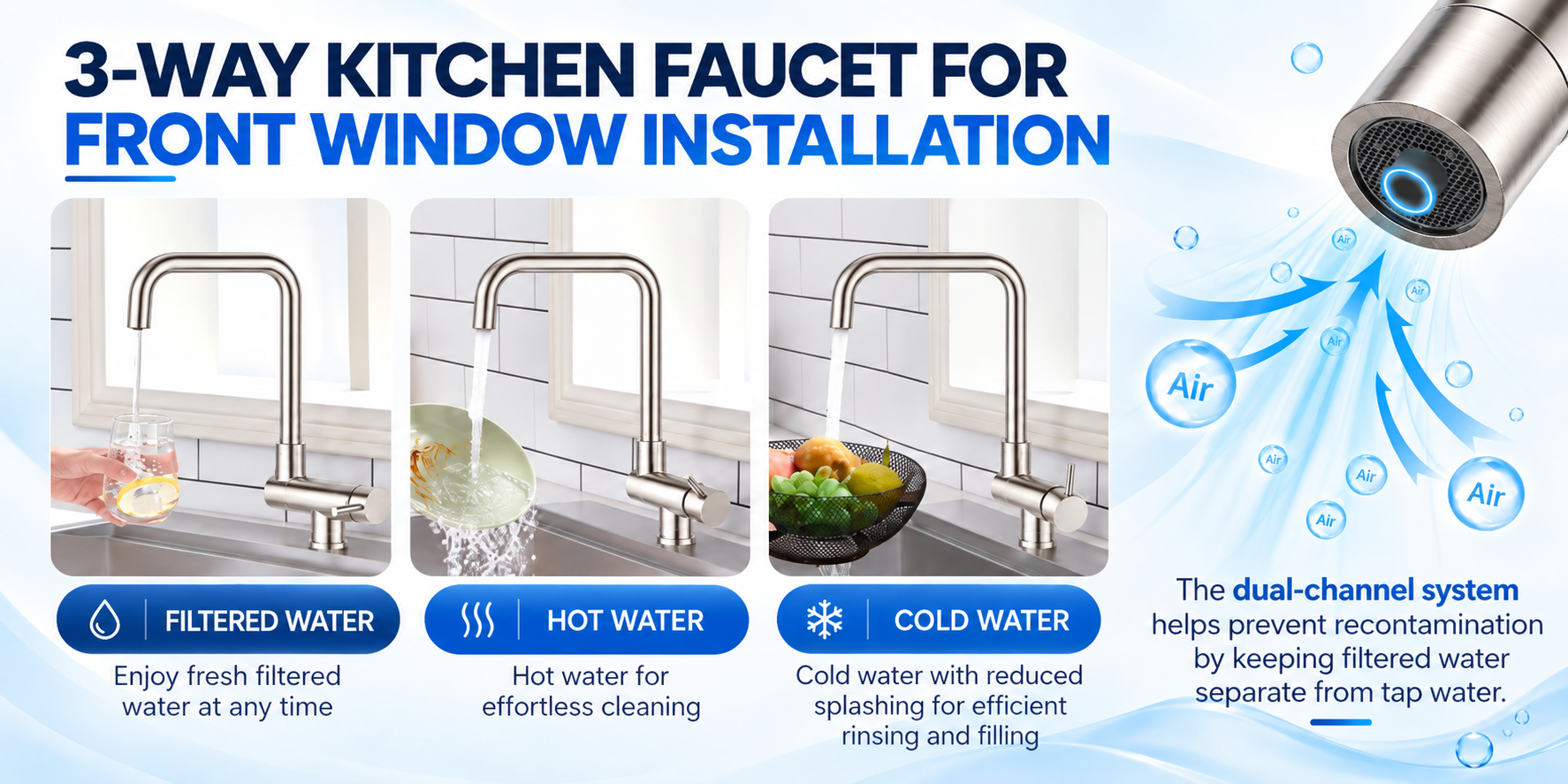

Hot, cold and filtered water from one tap
The tap has three separate water connections: hot water, cold water and filtered or purified water.
The filtered-water circuit remains separate from the hot and cold water circuit inside the tap. Treated water therefore follows its own dedicated path through the fitting.
There is no need to install an additional small tap solely for filtered water.
Designed for everyday kitchen use

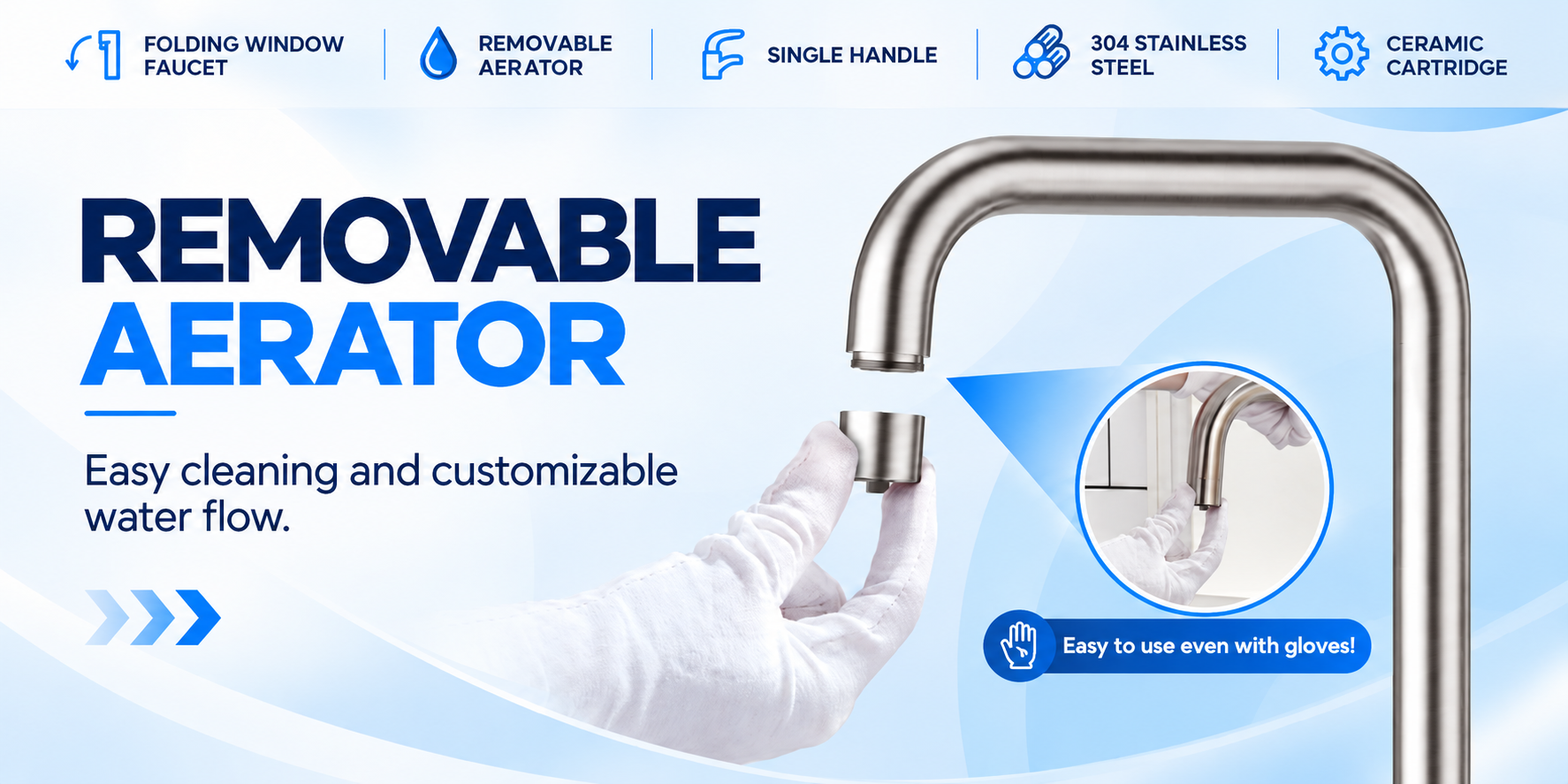

Removable aerator
The aerator at the end of the spout is removable. It can therefore be easily removed for cleaning in the event of limescale deposits or reduced water flow.

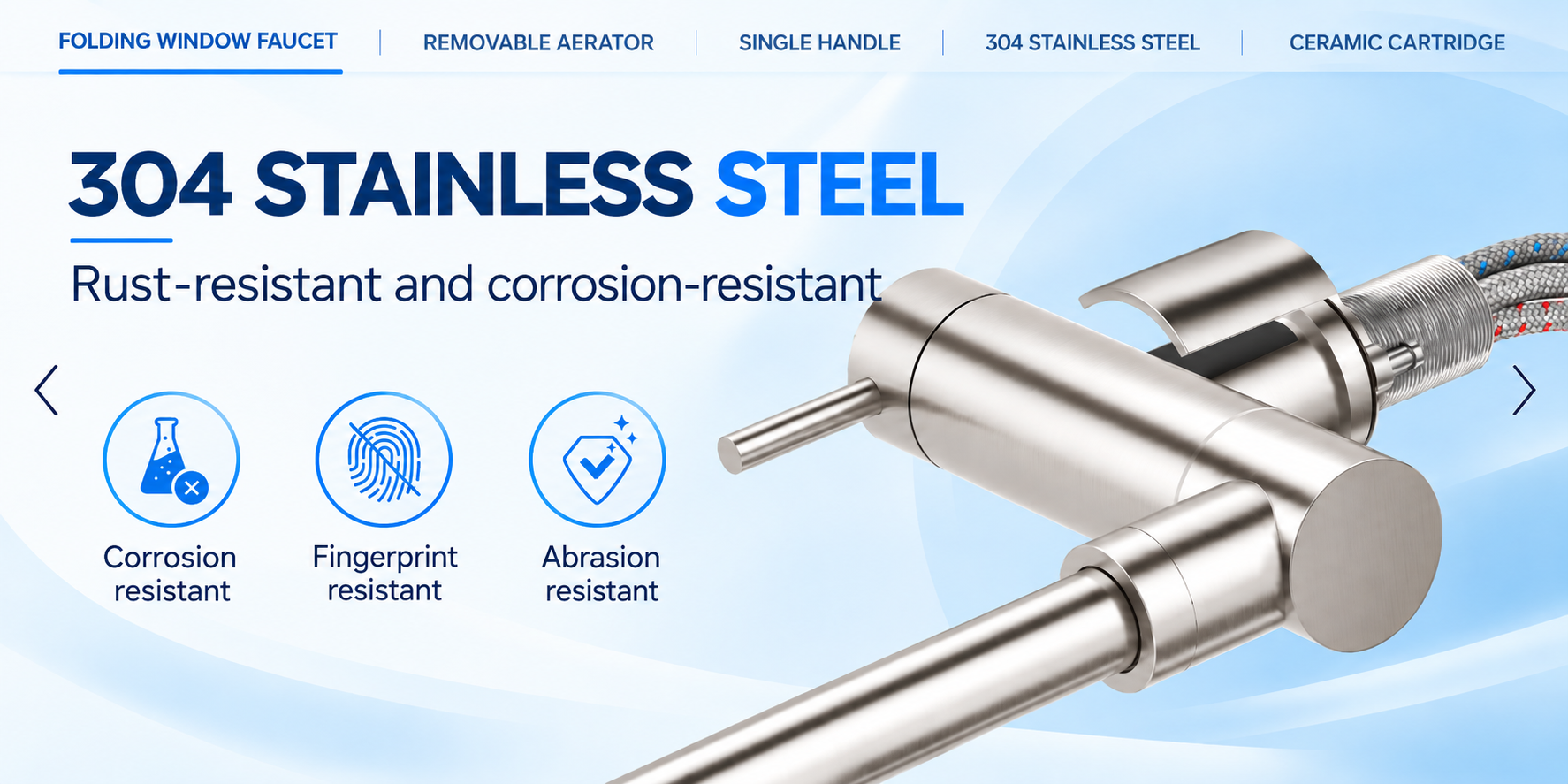

304 stainless steel body
The tap body is made from 304 stainless steel with a brushed finish, particularly well suited to a kitchen environment.

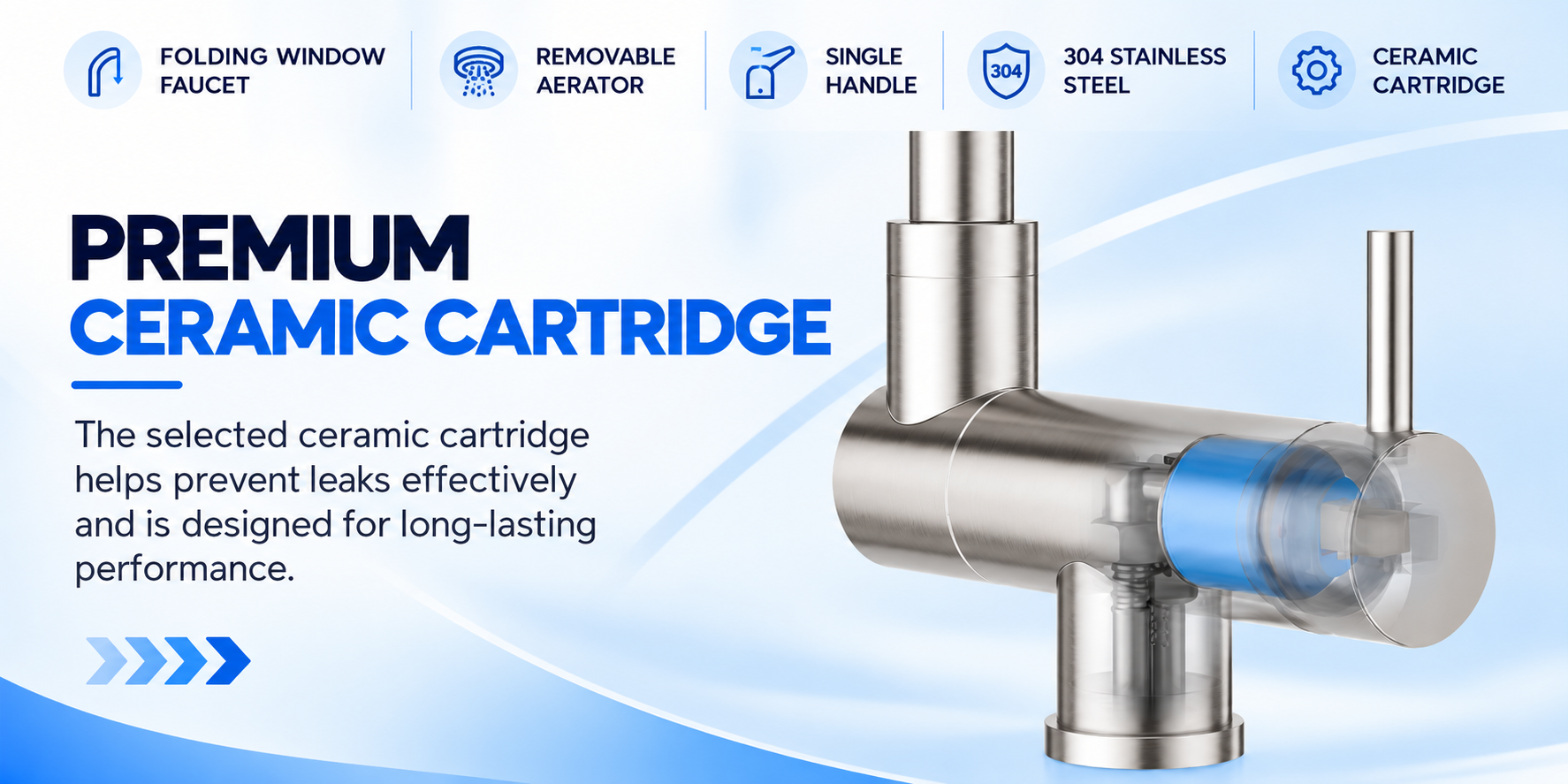

Ceramic cartridge
The control uses a ceramic cartridge, a solution commonly used in tapware to provide precise control of water flow and temperature.
Dimensions and technical specifications
| Type | Fold-down 3-way kitchen tap |
| Control | Single lever |
| Water supplies | Hot, cold and filtered / purified water |
| Material | 304 stainless steel |
| Finish | Brushed stainless steel |
| Cartridge | Ceramic |
| Aerator | Removable |
| Upright height | 336 mm |
| Folded height | 78 mm |
| Spout clearance | 250 mm |
| Spout reach | 206 mm |
| Mounting hole | Ø 32 to 40 mm |
| Maximum worktop thickness | 40 mm |
| Mixed-water flow rate | 8.7 L/min at 0.3 MPa |
| Hot / cold water flow rate | 6.4 L/min at 0.3 MPa |
| Filtered-water flow rate | 2.8 L/min at 0.1 MPa |

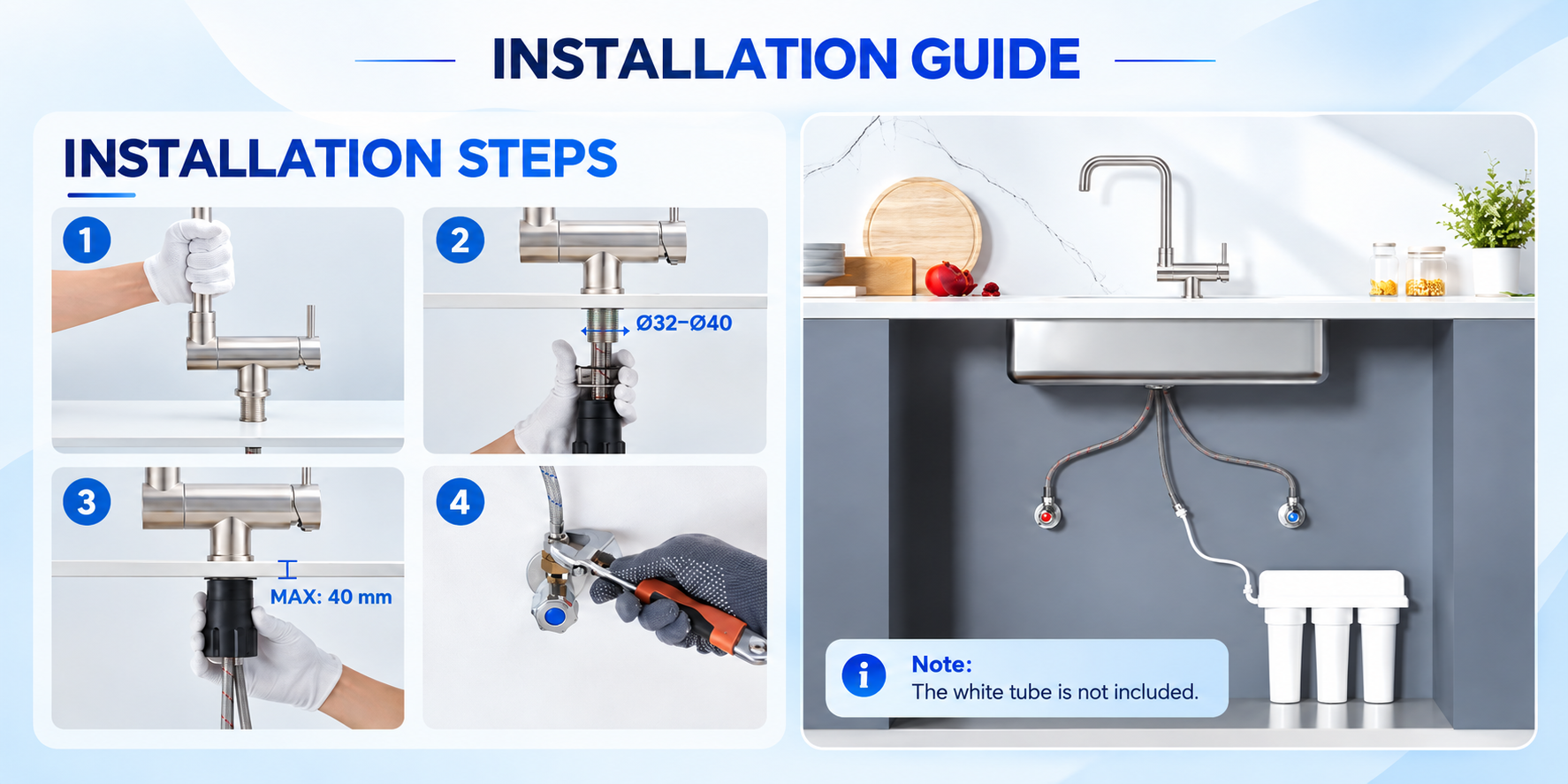

Installation
The tap can be installed on a sink or worktop with a mounting hole between 32 and 40 mm.
The maximum worktop thickness specified for this model is 40 mm.
1. Flush the water supply lines before installation.
2. Check the diameter of the mounting hole.
3. Insert the tap through the sink or worktop.
4. Fit the seals and mounting hardware underneath.
5. Connect the hot-water supply.
6. Connect the cold-water supply.
7. Connect the outlet from the filter or purifier.
8. Turn the water back on and check all connections for leaks.
All three water connections pass through a single mounting body, keeping the installation compact underneath the sink.
What's included
- fold-down 3-way kitchen tap;
- water supply hoses with 3/8" (12/17) connections;
- adapter fitting for 1/4" tubing for the filtered-water connection;
- rubber seal;
- stainless steel washer / mounting plate;
- mounting nut;
- installation instructions.
Maintenance
To preserve the brushed stainless steel finish, clean the tap regularly with a soft cloth.
Avoid abrasive sponges, cleaning powders and acidic products that may damage the surface.
If the flow rate decreases, the removable aerator can be removed and cleaned. Soaking it in white vinegar may help remove limescale deposits.
Periodically check the connections beneath the sink and protect the installation against freezing.
Compatible with an under-sink water purifier
This tap is designed for systems with a dedicated filtered or purified water supply.
It is particularly useful for replacing an installation consisting of a conventional kitchen mixer tap and a second small drinking-water tap.
Before installation, check that the connections on your filtration or purification system are compatible with the tap.
FAQ – Fold-down 3-way kitchen tap
It is particularly suitable when the sink is installed directly in front of a window. The spout can be folded down to clear the window opening.
The tap is only 78 mm high when fully folded, compared with 336 mm in the upright position.
The lever selects either filtered water or mixed hot and cold water. Filtered water is progressively opened by moving the lever forwards. For hot and cold water, move the lever to the right and then forwards or backwards to adjust the temperature.
Yes. Filtered or purified water has its own dedicated connection and a separate internal waterway.
No. This is the main advantage of a 3-way tap: all three functions are combined in one fitting.
Yes, provided that the connections on your system are compatible with the tap's dedicated filtered-water connection.
The required mounting hole is between 32 and 40 mm.
Yes. The body is made from 304 stainless steel with a brushed finish.
Yes. The aerator at the end of the spout is removable for easier cleaning.
Use a soft cloth and avoid abrasive or acidic cleaning products.
